Product Overview

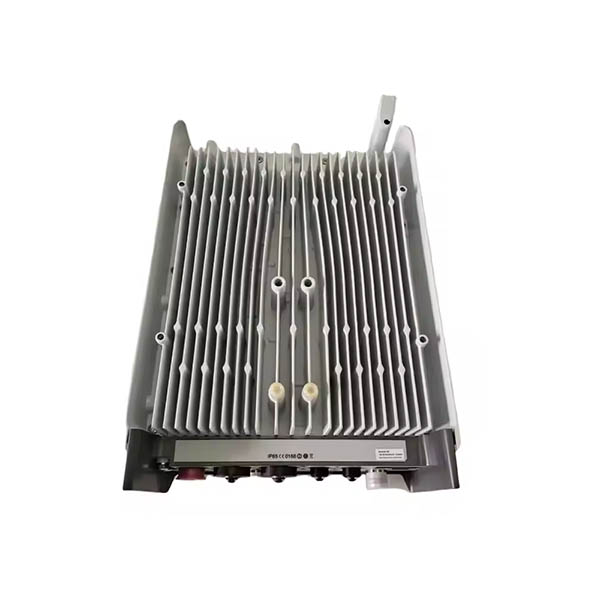

The Ericsson Radio 4415 B3 KRC 161 637/1 is an outdoor remote radio unit designed for Band 3 / 1800MHz mobile network deployments.

It features a 4T4R radio architecture with up to 4 × 40W RF output, providing a total rated transmit power of 160W. Ericsson Radio 4415 documentation identifies the product family as a compact outdoor radio platform with 4TX/4RX branches, optical CPRI connectivity and flexible pole or wall mounting options.

Radio 4415 supports multi-standard radio operation including GSM, WCDMA, LTE FDD, NB-IoT and NR, depending on hardware revision, software release and network configuration.

Linkworld Telecom supplies Ericsson Radio 4415 B3 units in used or refurbished condition, depending on current stock availability.

We support customers with exact part-number matching, R-state verification, inspection, testing, packing and international delivery.

Key Features

• Brand: Ericsson

• Model: Radio 4415 B3

• Part Number: KRC 161 637/1

• Product Type: Remote Radio Unit / Radio Unit

• Frequency Band: Band 3

• Frequency Class: 1800MHz

• Duplex Mode: FDD

• Radio Configuration: 4T4R

• Maximum RF Output: 4 × 40W

• Total Rated RF Output: 160W

• Optical CPRI fronthaul

• CPRI rate up to approximately 10.1Gbps

• Supports GSM / WCDMA / LTE FDD / NB-IoT / NR depending on configuration

• Designed for outdoor deployment

• Pole and wall mounting support

• Optional fan unit available for certain installation configurations

• Used / refurbished stock available

• Inspection before shipment available

Ericsson Radio 4415 documentation lists 4TX/4RX, optical CPRI up to 10.1Gbps and support for GSM, WCDMA, LTE FDD, NB-IoT and NR across the product family.

Technical Specifications

Ericsson documentation shows that Radio 4415 B3 dimensions and weight vary by R-state. Earlier revisions are approximately 20kg without a fan, while R-state ≥ R5 variants are listed around 17.5kg without a fan.

Frequency & Bandwidth

Radio 4415 B3 operates in the 1800MHz / Band 3 spectrum.

Ericsson radio capability documentation states that the exact instantaneous bandwidth varies depending on R-state, software and radio mode. For KRC 161 637/1 with R-state ≥ R5, LTE operation can support up to 75MHz IBW for carriers of 5MHz bandwidth or higher.

Because capability differs between revisions, I recommend avoiding one fixed IBW figure in the main specification table unless you have confirmed the exact R-state of the stock batch.

Product Function

The Radio 4415 B3 is designed to be installed close to the antenna, reducing feeder loss compared with traditional centralized RF architectures.

Typical functions include:

• RF transmission and reception

• 4T4R MIMO operation

• Optical connection to Ericsson baseband

• Outdoor macro-site deployment

• Multi-standard radio support

• Network expansion and radio replacement

Ericsson describes Radio 4415 as part of a modular radio architecture that can be deployed in star or cascade optical configurations.

Product Condition

Available Ericsson Radio 4415 B3 units may be supplied in used or refurbished condition, depending on current inventory.

For available stock, we can provide:

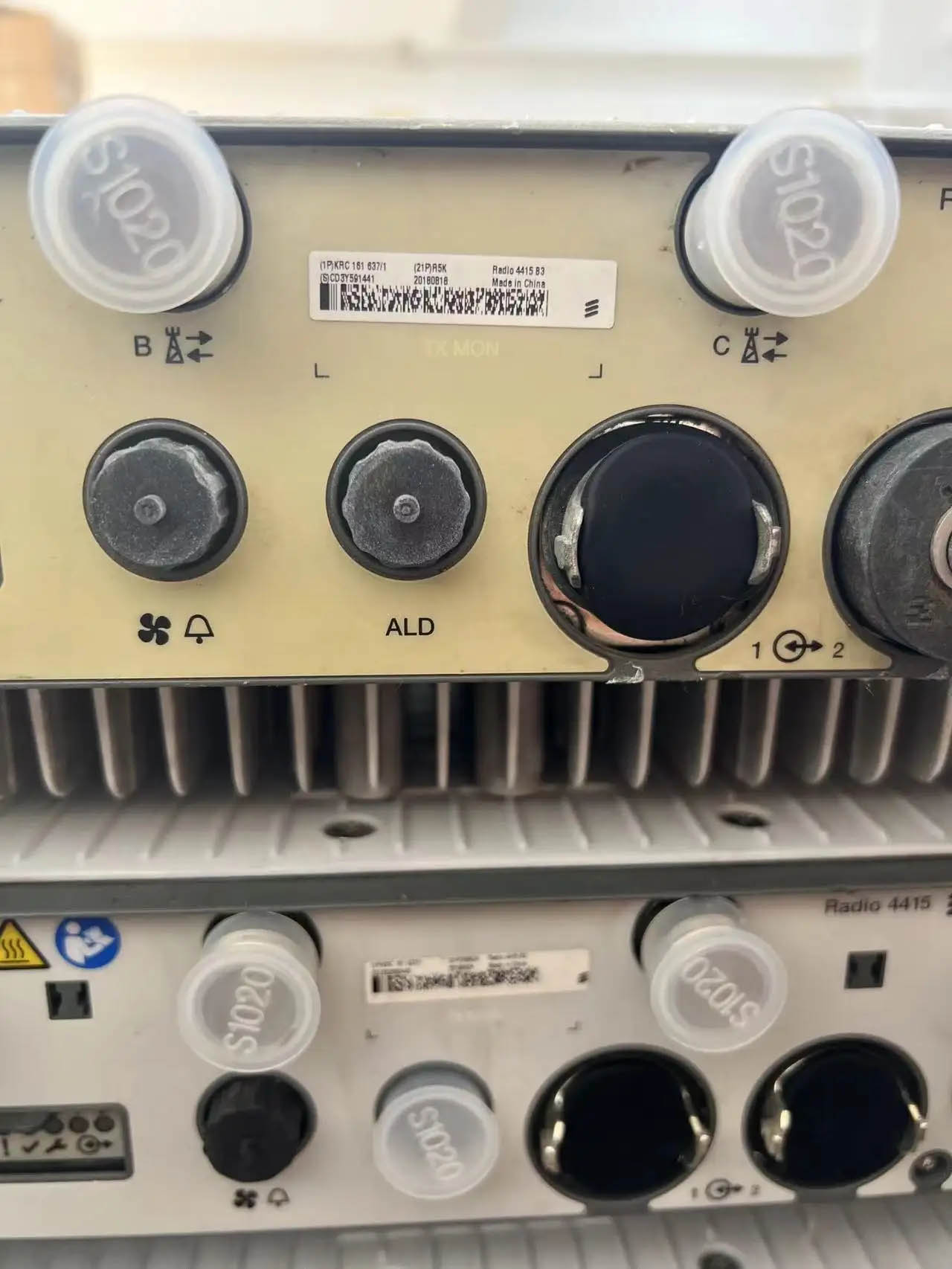

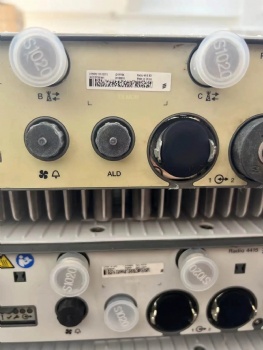

• Actual product photos

• Product label photos

• Exact part number verification

• R-state / hardware revision

• Serial number information

• Appearance condition

• Basic testing information

• Packing photos before shipment

Inspection & Testing

Before shipment, inspection can be arranged according to product condition and customer requirements.

Typical checks may include:

• Model verification

• Part number verification

• R-state / hardware revision check

• Serial number check

• Exterior condition inspection

• RF connector inspection

• Optical interface inspection

• Power input inspection

• Power-on check

• Functional testing where applicable

• Packing inspection

Applications

The Ericsson Radio 4415 B3 is suitable for:

• Band 3 / 1800MHz networks

• GSM / WCDMA / LTE deployments

• LTE modernization projects

• NR-supported network configurations

• Macro base stations

• Network expansion

• Radio replacement

• Telecom spare-parts inventory

• Equipment refurbishment projects

Related Ericsson Radio Equipment

Linkworld Telecom can also supply:

• Ericsson Radio 4415 B1 KRC 161 635/1

• Ericsson Radio 4415 B2/B25 KRC 161 636/1

• Ericsson Radio 4415 B7 KRC 161 495/1

• Ericsson Radio 4415 B66A KRC 161 644/1

• Ericsson Radio 2219 B3 KRC 161 619/1

• Ericsson Radio 4428 B3 KRC 161 713/1

Why Choose Linkworld Telecom

Telecom Equipment Experience
We supply new, used and refurbished telecom equipment for operators, integrators, resellers and maintenance companies.

Exact Part Number Matching
We help verify Ericsson model numbers, KRC part numbers and R-state revisions before shipment.

Real Stock Support
Actual product photos, labels and condition information can be provided for available stock.

Inspection Before Shipment
Products can be inspected and tested according to agreed requirements.

Bulk Quantity Support
We can support project quantities according to available stock and sourcing conditions.

Global Delivery Support
We support export packing, commercial documentation and international shipping coordination.

FAQ

What is Ericsson Radio 4415 B3 KRC 161 637/1?

It is an Ericsson outdoor remote radio unit for Band 3 / 1800MHz networks, featuring a 4T4R architecture.

What is the output power?

Common technical references list the KRC161637/1 as 4 × 40W, giving 160W total RF output.

Does Radio 4415 B3 support 5G NR?

The Radio 4415 product description includes NR among the supported technologies, but actual availability depends on R-state, software and network configuration.

What is the difference between different R-states?

Different R-states may have differences in hardware design, weight, installation options and radio capabilities such as IBW. Therefore, the exact R-state should be confirmed from the product label before ordering.

Can you provide actual stock photos?

Yes. Actual product photos, labels and serial-number information can be provided for available units upon request.

Can you support large quantities?

Availability depends on current stock, but Linkworld Telecom has previously handled a 254-piece Radio 4415 B3 project, so this is a good product for you to emphasize bulk-supply capability on the page.

Request a Quote

Looking for Ericsson Radio 4415 B3 KRC 161 637/1?

Please send us your:

Part Number · R-State · Quantity · Required Condition · Destination Country

We will help check current stock, condition and availability.
