Products

Product Overview

The Ericsson AIR 3227 B42 KRD901188/11 is an Antenna Integrated Radio designed for high-capacity TDD LTE and 5G NR deployments in the 3400–3600MHz Band 42 spectrum.

It combines radio and active antenna functions in a single outdoor unit and uses a 32T32R Massive MIMO architecture with adaptive beamforming to improve network capacity, coverage and spectral efficiency. Public technical references list the AIR 3227 B42 with 200W maximum RF output, 128 antenna elements, and 2 × 25Gbps eCPRI interfaces.

The unit is designed for macro-site deployment and is especially suitable for mid-band 5G network expansion, capacity upgrades and modernization projects.

Linkworld Telecom supplies Ericsson AIR 3227 B42 units in new, used or refurbished condition, depending on current stock availability.

Key Features

• Brand: Ericsson

• Model: AIR 3227 B42

• Part Number: KRD 901 188/11

• Product Type: Antenna Integrated Radio / AAS

• Frequency Band: Band 42

• Frequency Range: 3400–3600MHz

• Duplex Mode: TDD

• Supported Technologies: LTE / 5G NR

• MIMO Configuration: 32T32R

• Antenna Elements: 128

• Maximum RF Output: 200W

• Massive MIMO support

• Adaptive beamforming

• MU-MIMO support

• Instantaneous Bandwidth: up to 200MHz

• eCPRI fronthaul

• 2 × 25Gbps eCPRI interfaces

• -48V DC power supply

• Outdoor macro deployment

• Passive cooling

• New / used / refurbished stock available

Technical Specifications

The dimensions, weight, 32T32R configuration, 200W output and 25G eCPRI interfaces are listed in public AIR 3227 B42 technical references.

Massive MIMO & Beamforming

The Ericsson AIR 3227 B42 uses 32T32R Massive MIMO to improve both coverage and network capacity.

Its integrated active antenna architecture supports:

• Digital beamforming

• MU-MIMO

• Dynamic beam steering

• Improved spectral efficiency

• Better user throughput

• Higher capacity in dense urban networks

This makes the AIR 3227 B42 particularly suitable for mid-band 5G deployments where operators need both coverage and high traffic capacity.

LTE & 5G NR Support

Public technical references describe the AIR 3227 B42 as supporting:

• LTE TDD

• 5G NR

• LTE / NR mixed deployments

One public equipment reference lists support for up to 4 LTE carriers, up to 2 NR carriers, and mixed-mode combinations depending on network configuration and software.

Actual carrier capacity depends on:

• Software release

• Baseband configuration

• Network architecture

• Licensing

• Deployment mode

25G eCPRI Connectivity

AIR 3227 B42 is designed for newer Ericsson baseband architectures and uses high-speed eCPRI instead of older CPRI-only connectivity.

Public specifications list:

• 2 × 25Gbps eCPRI interfaces

This makes the radio suitable for high-capacity Massive MIMO and 5G base station deployments.

Product Condition

Available Ericsson AIR 3227 B42 units may be supplied in:

• New condition

• Used condition

• Refurbished condition

depending on current stock.

For available units, Linkworld Telecom can provide:

• Actual product photos

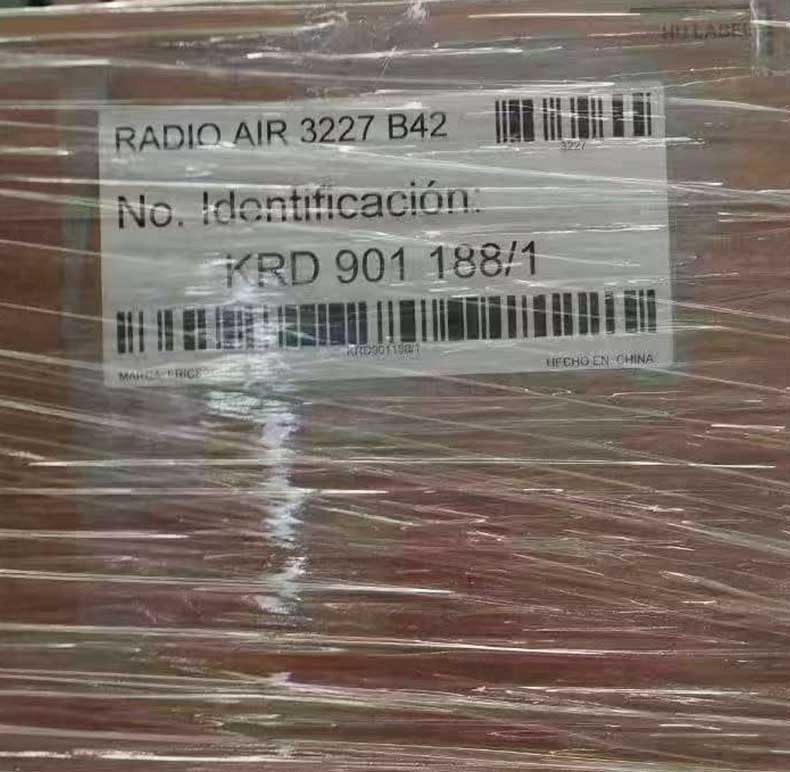

• Product label photos

• Exact KRD part number

• Hardware revision

• Serial number information

• Exterior condition

• Connector/interface condition

• Basic testing information

• Packing photos before shipment

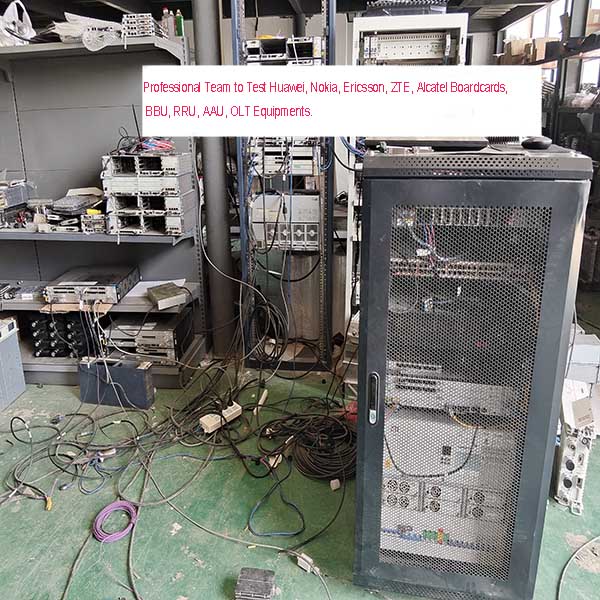

Inspection & Testing

Before shipment, inspection can be arranged according to order requirements.

Typical checks may include:

• Model verification

• KRD part number verification

• Hardware revision check

• Serial number verification

• Exterior condition inspection

• Radome inspection

• Power input inspection

• Optical/eCPRI interface inspection

• Power-on check where applicable

• Functional testing according to agreed requirements

• Packing inspection

Applications

The Ericsson AIR 3227 B42 is suitable for:

• 5G NR mid-band networks

• LTE TDD networks

• Massive MIMO deployments

• 3.5GHz macro base stations

• Urban high-capacity sites

• Network modernization

• 5G capacity expansion

• Radio replacement projects

• Telecom spare-parts inventory

• Equipment refurbishment projects

Related Ericsson AIR Products

Linkworld Telecom can also supply related Ericsson active antenna products, including:

• Ericsson AIR 6488 B42 KRD901097/11

• Ericsson AIR 6488 B43 KRD901096/11

• Ericsson AIR 6449 B42 KRD901119/11

• Ericsson AIR 6449 B43 KRD901203/11

• Ericsson AIR 6488 B41 KRD901108/11

• Ericsson AIR 3227 B78T KRD901201/11

• Ericsson AIR 4455 B1/B3 KRD901111/1

Why Choose Linkworld Telecom

Telecom Equipment Experience
We supply new, used and refurbished Ericsson, Nokia and other telecom equipment for operators, integrators, resellers and maintenance companies.

Exact Part Number Matching
We help verify Ericsson KRD part numbers and hardware revisions before shipment.

Real Stock Support
Actual product photos, labels and condition information can be provided for available units.

Inspection Before Shipment
Products can be inspected and tested according to agreed requirements.

Bulk Quantity Support
We support both individual replacement units and project quantities according to current stock availability.

Global Delivery Support
We provide export packing, commercial documentation and international shipping coordination.

FAQ

What is Ericsson AIR 3227 B42?

The AIR 3227 B42 is an Ericsson Antenna Integrated Radio / Active Antenna System for LTE and 5G NR networks in the 3400–3600MHz Band 42 spectrum.

Is AIR 3227 B42 a normal RRU?

No. It is more accurately described as an Antenna Integrated Radio / AAS, because the active radio and antenna array are integrated into one unit.

What is the MIMO configuration?

The AIR 3227 B42 uses a 32T32R Massive MIMO architecture.

What is the maximum RF output power?

Public technical references list 200W maximum RF output.

What frequency range does it support?

The documented range is 3400–3600MHz, corresponding to Band 42.

Does it support 5G?

Yes. Public product references list support for 5G NR as well as LTE.

Does it support Massive MIMO and beamforming?

Yes. AIR 3227 B42 is a 32T32R Massive MIMO active antenna radio with adaptive beamforming capability.

What fronthaul interface does it use?

Public specifications list 2 × 25Gbps eCPRI interfaces.

Can you provide actual stock photos?

Yes. Actual stock photos, product labels, KRD numbers and condition information can be provided for available units.

Request a Quote

Looking for Ericsson AIR 3227 B42 KRD901188/11 or other Ericsson 5G Massive MIMO equipment?

Please send us your:

Part Number · Hardware Revision · Quantity · Required Condition · Destination Country

We will help check current stock, condition and availability.
